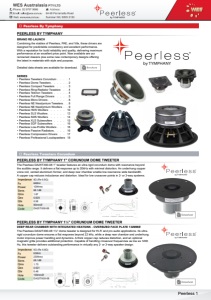

WES Australasia PTY/LTD Peerless 1 Peerless By Tymphany Peerless Tweeters Corundum Combining the stables of Peerless, PAE, and Vifa, these drivers are designed for predictable consistency and excellent performance. With a reputation for build reliability and quality, delivering maximum performance at an excellent price point. Now available are our renowned classics plus some new contemporary designs offering the latest in materials with style and purpose. Detailed data sheets are available for download. PEERLESS BY TYMPHANY PEERLESS BY TYMPHANY 1" CORUNDUM DOME TWEETER The Peerless DA25TX00-08 1” tweeter features an ultra-rigid corundum dome with resonance beyond the audible range. It delivers a flat response up to 20kHz with minimal distortion. An underhung copper voice coil, vented aluminium former, and deep rear chamber enable low resonance wide bandwidth. A copper cap reduces inductance and distortion. Ideal for low crossover points in 2- or 3-way systems. Impedance 8Ω (Re 6.9Ω) Fs 640Hz Power 15Wrms Sens. 88.1dB Qms 1.87 Qes 0.829 Qts 0.58 Hole 90mmØ Code DA25TX00-08 PEERLESS BY TYMPHANY 1¼" CORUNDUM DOME TWEETER The Peerless DA32TX00-08 1¼" dome tweeter is designed for Hi-Fi and pro audio applications. Its ultrarigid corundum dome ensures a flat response beyond 22 kHz, while a deep rear chamber and underhung motor improve power handling and dynamics. A thick copper cap reduces distortion, and an optional magnetic grille provides additional protection. Capable of handling crossover frequencies as low as 1200 Hz, this tweeter delivers outstanding performance in virtually any 2- or 3-way speaker design. Impedance 8Ω (Re 6.8Ω) Fs 630Hz Power 25Wrms Sens. 88.1dB Qms 1.73 Qes 0.621 Qts 0.46 Hole 100mmØ Code DA32TX00-08 DEEP REAR CHAMBER WITH INTEGRATED HEATSINK - OVERSIZED FACE PLATE 132MMØ SERIES • Peerless Tweeters Corundum 1 • Peerless Dome Tweeters . . . . . 2 • Peerless Compact Tweeters . . . . 3 • Peerless Ring-Radiator Tweeters . . 4 • Peerless Tetoron Tweeters 4 • Peerless Full Range Drivers . . . . 5 • Peerless Micro Drivers . . . . . . 8 • Peerless NE Neodymium Tweeters . 8 • Peerless NE Neodymium Woofers 9 • Peerless HDS Woofers . . . . . 10 • Peerless SLS Woofers . . . . . 12 • Peerless SDS Woofers . . . . . 14 • Peerless XLS Subwoofers 15 • Peerless SDF Subwoofers 16 • Peerless Low-Profile Woofers 16 • Peerless Passive Radiators . . . 16 • Peerless Compression Drivers . . 17 • Peerless Professional Loudspeakers 18 BRAND RE-LAUNCH
2 Peerless WES Australasia PTY/LTD The Peerless textile dome tweeters are renowned for their smooth, extended frequency response and high efficiency. Their textile dome diaphragm and ferrofluid-cooled voice coil minimise distortion and improve thermal handling, while the recess loaded faceplate allows for easy mounting and optimised dispersion. These tweeters deliver solid performance and are ideal for cost-effective Hi-Fi builds. Recommended cross-over frequency between 2.0KHz and 2.5KHz in speaker systems up to 80Wrms. Impedance 4Ω (Re 3.2Ω) 8Ω (Re 6.7Ω) Fs 1100Hz 1100Hz Power 7Wrms 15Wrms Sens. 91dB 91dB Qms 2.75 3.15 Qes 1.53 1.66 Qts 0.98 1.1 Diam. 104mmØ 104mmØ Hole 70mmØ 70mmØ Code BC25TG15-04 BC25TG15-08 PEERLESS BY TYMPHANY 1" FABRIC DOME TWEETER PEERLESS BY TYMPHANY 1" FABRIC DOME TWEETER LARGE REAR CHAMBER WIDE BANDWIDTH High-performance 1" coated textile dome tweeter designed for smooth, natural treble reproduction with extended frequency response over 20 kHz. It features a large magnet with ferrofluid cooling for enhanced thermal handling, a linear response faceplate for improved dispersion, and braided tinsel leads for durability. Its over-sized rear chamber lowers the resonance frequency, extending bandwidth and allowing for flexible crossover integration. Ideal for DIY designs or possible drop-in replacement. Impedance 6Ω (Re 4.9Ω) Fs 900Hz Power 15Wrms Sens. 90.6dB Qms 1.13 Qes 1.03 Qts 0.54 Vas 0.007L Hole 72mmØ Code D27TG35-06 This 1” silk soft dome tweeter features a lightweight diaphragm with a large surround structure, providing an extended high-frequency response and excellent off-axis characteristics. Additionally, it features a 25mm ferrofluid-cooled voice coil, tuned rear chamber, and robust five-hole faceplate that deliver superior performance and well behaved frequency responce. Impedance 4Ω (Re 3Ω) Fs 590Hz Power 15Wrms Sens. 90.4dB Qms 2.16 Qes 0.609 Qts 0.48 Hole 82mmØ Code DX25TG59-04 Peerless Dome Tweeters PEERLESS BY TYMPHANY 1" SILK DOME PEERLESS BY TYMPHANY 1" DOME TWEETER - PREMIUM HDS ALUMINIUM FACE PLATE LOCALLY DEVELOPED HIGH-DEFINITION-SERIES Impedance 8Ω (Re 5.6Ω) Fs 700Hz Power 80Wrms Sens. 91.3dB Qms 0.51 Qes 0.65 Qts 0.29 Hole 72mmØ Code 810921 104mmØ 72mmØ 4.5mm 32.3mm The Peerless HDS series 810921 1” tweeter features a very light, low-mass soft dome, paired with a fully vented dual-magnet motor system and a precision-cast aluminium curved faceplate to deliver uncompressed, natural sound across an extended frequency range. Thanks to its optimised design, the HDS tweeter supports lower crossover points, making it easier to match with a wide variety of drivers while maintaining high-end sonic fidelity. FLAGSHIP AUDIOPHILE TWEETER
WES Australasia PTY/LTD Peerless 3 PEERLESS BY TYMPHANY 1" FABRIC DOME TWEETER NEODYMIUM WITH NEODYMIUM MAGNET AND HEATSINK FINS The Peerless BC25SC06-04 1" textile dome tweeter features a treated soft dome, neodymium motor, and rear heatsink with fins for thermal control. Its waveguide faceplate enhances dispersion and delivering smooth response. Ideal for car audio, desktop monitors, and compact Hi-Fi systems. Impedance 4Ω (Re 2.76Ω) Fs 1395Hz Power 25Wrms Sens. 92.4dB Qms 3.45 Qes 1.76 Qts 1.17 Hole 44mmØ Code BC25SC06-04 COMPACT FACE PLATE CABINET FACE PLATE PEERLESS BY TYMPHANY 1" FABRIC DOME TWEETER NEODYMIUM COMPACT FACE PLATE 44X70MM Smooth-sounding compact soft dome tweeter with high output and response past 30 kHz. High-strength neodymium motor with heatsink fins. Polymer faceplate with recessed waveguide loading. 1” treated soft dome. Neodymium magnet for high output and compact size. Truncated faceplate permits optimal driver spacing. Impedance 4Ω (Re 3Ω) Fs 1400Hz Power 7Wrms Sens. 90.2dB Qms 3.6 Qes 2.07 Qts 1.3 Hole 44.1mmØ Code BC25SC5504 PREMIUM NEODYMIUM SUPER COMPACT No face plate. Super compact tweeter developed to maximise performance. Large surround to result good suspension for dispersion and reduced distortion. Treated fabric diaphragm dome. High sensitivity, double wound 20mm voice coil motor. Neodymium rare-earth high flux magnet with heat sink. Low resonance rear chamber for higher dynamic range. Impedance 4Ω (Re 3.3Ω) Fs 1000Hz Power 16Wrms Sens. 86.5dB Qms 9.1 Qes 1.89 Qts 1.6 Vas 0.006L Code OX20SC00-04 SEMI-HORN LOADED 66MMØ FACIA The Peerless silk dome tweeter delivers smooth response, low distortion, and impressive value. Its wide surround and damped silk diaphragm, paired with a deep ferrite triple-magnet motor and rear chamber, achieve a remarkably low resonant frequency. The semi-horn loaded faceplate boosts efficiency and maintains consistent off-axis performance up to 30°. The triple ferrite motor also improves power handling through enhanced heat dissipation for a compact driver. Impedance 4Ω (Re 3Ω) Fs 840Hz Power 10Wrms Sens. 84.9dB Qms 3.05 Qes 2.92 Qts 1.5 Hole 49mmØ Code DX20BF00-04 Peerless Compact Tweeters PEERLESS BY TYMPHANY ¾" SILK DOME TWEETER PEERLESS BY TYMPHANY ¾" FABRIC DOME TWEETER OPEN
4 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER THE ORIGINAL WAVEGUIDE CENTRE PLUG TRANSDUCER Dual concentric diaphragm, wave guide centre plug for excellent on- and off-axis response and a very “natural” sound. An extremely smooth response that extends beyond human hearing Dual chamber for low resonance makes this tweeter also suitable for 2-way systems. Impedance 4Ω (Re 3.1Ω) Fs 440Hz Power 15Wrms Sens. 88.9dB Qms 2.36 Qes 0.539 Qts 0.44 Hole 72mmØ Code XT25TG30-04 PEERLESS BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER NEODYMIUM SUPER COMPACT RING RADIATOR TWEETER Engineered for precision, the XT25SC90-04 1" dual ring radiator tweeter features a patented dual concentric diaphragm and waveguide centre plug that deliver exceptionally smooth on- and off-axis response. Its neodymium motor ensures low distortion and compact form factor, while the flat frequency response extends cleanly to 40 kHz. Ideal for high-resolution audio systems. Impedance 4Ω (Re 3.2Ω) Fs 830Hz Power 15Wrms Sens. 87.2dB Qms 7.36 Qes 1.17 Qts 1 Hole 46.5mmØ Code XT25SC90-04 PEERLESS BY TYMPHANY 1” DUAL CONCENTRIC RING RADIATOR TWEETER THE ORIGINAL WAVEGUIDE CENTRE PLUG TRANSDUCER Dual ring radiator tweeter features the patented dual-concentric diaphragm with a precision waveguide centre plug, providing excellent on- and off-axis response. Its ring radiator geometry and advanced motor deliver smooth, wide-frequency dispersion, making it a revolution in tweeter design. Rear chamber to extend low-frequency response. The faceplate has five recessed mounting holes. Eliminates dome resonance. Lower moving mass for high transients. Reduced distortion energy. Impedance 4Ω (3Ω) Fs 570Hz Power 15Wrms Sens. 89.6dB Qms 2.67 Qes 0.502 Qts 0.42 Hole 72mmØ Code XT25BG60-04 Peerless Ring-Radiator Tweeters Peerless Tetoron Tweeters CABINET FACE PLATE PEERLESS BY TYMPHANY 1¼" TETORON DOME TWEETER OPEN This compact 32mm transducer is engineered with a powerful neodymium motor and smooth Teteron diaphragm delivers crystal-clear audio across a broad range. Weighing 96.6g, it suits high-end designs where space is tight and expectations are high. For premium headphones or custom speakers, the OX32SC00-08 offers effortless integration, low resonance, and uncompromising sound quality. Impedance 8Ω (Re 6.5Ω) Fs 750Hz Power 15Wrms Sens. 89.2dB Qms 4.61 Qes 1.46 Qts 1.1 Code OX32SC00-08
WES Australasia PTY/LTD Peerless 5 Ideal for portable speakers and soundbars, and pairs seamlessly with Peerless subwoofers for full-range audio reproduction. PEERLESS BY TYMPHANY 2" FULL RANGE EXCELLENCE IN A VERY COMPACT DRIVER - RUBBER SURROUND The Peerless P830983 2” full-range driver features an anodised aluminium dome that provides superior sound dispersion and off-axis response, combined with a direct-connect dust cap to enhance high-frequency clarity. Its neodymium motor and double-vented structure ensure a stable dynamic range and efficient thermal control, while a copper-capped pole piece delivers precise impedance control and extended high-frequency output. Impedance 4Ω (Re 3.4Ω) Fs 140Hz Power 20Wrms Sens. 81.9dB Qms 6.53 Qes 0.697 Qts 0.63 Vas 0.24L Hole 50mmØ Code 830983 PEERLESS BY TYMPHANY 2" FULL RANGE EXCELLENCE IN A VERY COMPACT DRIVER - INVERTED RUBBER SURROUND The Peerless P830970 2” full range driver features an aluminium dome and an inverted semi-progressive rubber surround for low distortion and extended excursion. Its neodymium motor and double-vented design keeps dynamic range intact and ensures thermal control. A copper-capped pole improves impedance and thereby extending the upper frequency range. The lightweight basket suits soundbars and compact audio systems. Impedance 4Ω (Re 3.5Ω) Fs 210Hz Power 25Wrms Sens. 82.3dB Qms 3.38 Qes 0.867 Qts 0.69 Vas 0.106L Hole 50mmØ Code P830970 Impedance 4Ω (Re 3.6Ω) Fs 120Hz Power 30Wrms Sens. 81.9dB Qms 4 Qes 0.857 Qts 0.71 Vas 0.475L Hole 61.5mmØ Code P830985 The Peerless P830985 2½” driver features an aluminium dome and inverted a semi-progressive rubber surround for low distortion and extended excursion. Its neodymium motor and double-vented design ensure thermal control and stable dynamic range. A copper-capped pole improves impedance and highs, while the lightweight basket suits slim soundbars and compact audio systems. EXCELLENCE IN A COMPACT DRIVER - INVERTED SURROUND PEERLESS BY TYMPHANY 2½" FULL RANGE Peerless Full Range Drivers PEERLESS BY TYMPHANY 2½" FULL RANGE The Peerless P830984 2½” full-range driver combines an anodised aluminium dome with a semiprogressive rubber surround for low distortion and extended excursion. Its compact neodymium motor and double-vented structure deliver efficient thermal control and consistent dynamic range. A copper-capped pole piece enhances impedance control and high-frequency extension, while the lightweight polymer basket makes it ideal for slim soundbars and portable audio systems. Impedance 8Ω (Re 6.3Ω) Fs 110Hz Power 25Wrms Sens. 82.7dB Qms 5.46 Qes 0.87 Qts 0.75 Vas 0.547L Hole 61.6mmØ Code 830984
6 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 5½" MAGNETICALLY SHIELDED PEERLESS ACOUSTIC ENGINEERING Composite polymer chassis polyamide, glass & minerals. High power, temperature resistant, open air, vented pole, voice coil. Dual layered NRSC coated fibre cone with rubber surround. Impedance 8Ω (Re 5.8Ω) Fs 46.685Hz Power 40Wrms Sens. 88.572dB Qms 2.405 Qes 0.672 Qts 0.525 Vas 30.882L Hole 147mmØ Code BC18SG08-08 Impedance 8Ω (Re 6.2Ω) Fs 110Hz Power 25Wrms Sens. 84.2dB Qms 5.2 Qes 0.944 Qts 0.8 Vas 0.834L Hole 71.9mmØ Code P830986 The Peerless P830986 3” full-range driver features an anodised aluminium dome with semi-progressive rubber surround, driven by a neodymium motor and double-vented structure for improved thermal handling. This ensures low distortion and extended excursion, while a copper-capped pole piece enhances impedance control and high-frequency response. Ideal for full-range applications in compact enclosures. EXCELLENCE IN A VERY COMPACT DRIVER PEERLESS BY TYMPHANY 3" FULL RANGE PEERLESS BY TYMPHANY 3" FULL RANGE EXCELLENCE IN A VERY COMPACT DRIVER - INVERTED SURROUND The Peerless P830987 3” full-range driver features an anodised aluminium dome with inverted rubber surround for low distortion and extended excursion. Its neodymium motor and double-vented design ensure thermal efficiency and consistent dynamic range. A copper-capped pole piece improves impedance and high-frequency response, while the lightweight polymer basket adds rigidity. Perfect for soundbars and compact systems. Impedance 8Ω (Re 6.2Ω) Fs 110Hz Power 25Wrms Sens. 81.8dB Qms 6.74 Qes 1.22 Qts 1 Vas 0.99L Hole 72mmØ Code P830987 PEERLESS BY TYMPHANY 3½" FULL-RANGE The Peerless TC9FD-18-08 is a compact 3½" full-range paper cone woofer designed for high-performance audio in confined spaces such as televisions and small speaker systems. It incorporates advanced technologies, including a lightweight, non-resonant polymer chassis, a patented NRSC paper cone, and a copper pole piece cap. Its modest size belies its sonic capability, making it a favourite among DIY audio enthusiasts and professionals seeking rich sound from a small footprint. Impedance 8Ω (Re 6.3Ω) Fs 124.86 Hz Power 30Wrms Sens. 84.56dB Qms 2.73 Qes 1.33 Qts 0.89 Vas 1.24L Hole 78mmØ Code TC9FD18-08
WES Australasia PTY/LTD Peerless 7 PEERLESS BY TYMPHANY 2" FULL-RANGE PATENTED NRSC PENTACUT PAPER CONE The Peerless TC6FD00-04 2" full-range driver features a patented PentaCut paper cone that enhances musicality and accuracy. Its cost-effective ceramic ferrite magnet and stamped steel frame offer solid performance without compromising value. A copper-capped pole piece controls system impedance, extending high-frequency response. Compact and efficient, it brings classic Hi-Fi sound to modern music and media systems. Impedance 4Ω (Re 3.6Ω) Fs 180Hz Power 15Wrms Sens. 80.8dB Qms 4.25 Qes 1.36 Qts 1 Vas 0.192L Hole 50mmØ Code TC6FD00-04 PEERLESS BY TYMPHANY 2½" FULL RANGE PAPER CONE WOOFER The Peerless TC7FD00-04 is a 2½-inch full-range speaker that delivers classic hi-fi performance to compact music and media systems. Peerless’s patented PentaCut paper cone technology enhances musicality and accuracy, while the driver incorporates a cost-effective ceramic ferrite magnet. A copper cap on the pole piece controls system impedance, thereby extending the upper frequency range. The TC7FD00-04 is ideally suited for use in flat-panel televisions and soundbars, MP3 and mobile phone docking stations, hi-fi speaker line arrays, and multimedia PCs. Impedance 4Ω (Re 3.5Ω) Fs 160Hz Power 20Wrms Sens. 82.1dB Qms 3.97 Qes 1.48 Qts 1.1 Vas 0.385L Hole 58.1mmØ Code TC7FD00-04 PEERLESS BY TYMPHANY 1½" FULL RANGE DRIVER PAPER CONE Impedance 4Ω (Re 3.2Ω) Fs 250Hz Power 5Wrms Sens. 78.3dB Qms 4.64 Qes 2.43 Qts 1.6 Vas 0.07L Hole 36.5mmØ Code TC5FB00-04 The Peerless TC5FB00-04 is a compact 1½" full-range driver featuring a lightweight paper cone and ferrite magnet, engineered for solid acoustic performance in space-constrained designs. Its square frame with a round diaphragm allows for snug integration into tight enclosures, making it ideal for slim sound bars, portable Bluetooth speakers, desktop monitors, and other embedded audio applications. PEERLESS BY TYMPHANY 2” FULL RANGE DRIVER ALUMINIUM CONE The Peerless TA6FD00-04 and TA6FD00-08 are 2" full-range drivers with anodised aluminium cones and dust caps for smooth response and reduced resonance. They feature a rigid steel basket with under-spider venting for motor cooling and a ferrite magnet with a copper cap to lower coil inductance, resulting in low distortion and extended high-frequency performance. These drivers are suited for ultra-compact audio applications like soundbars, near-field monitors, and portable Bluetooth speakers. Impedance 4Ω (Re 3.5Ω) 8Ω (Re 6.4Ω) Fs 170Hz 170Hz Power 10Wrms 10Wrms Sens. 79.9dB 80dB Qms 4.33 4.45 Qes 1.56 1.73 Qts 1.1 1.2 Vas 0.205L 0.197L Hole 50mmØ 50mmØ Code TA6FD00-04 TA6FD00-08
8 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 2" NE SERIES SPEAKER NEODYMIUM NEODYMIUM-IRON-BORON MAGNET FULL RANGE The compact Peerless NE65W-04 2" full-range driver features an aluminium cone with a FEA-optimised butyl rubber half-roll surround, driven by a high-strength neodymium motor. Its sculpted cast aluminium frame minimises internal reflections and doubles as a heatsink for improved thermal performance. A titanium voice coil bobbin and copper-capped motor enhance high-frequency response and reduce inductive distortion. Impedance 4Ω (Re 3.5Ω) Fs 180Hz Power 25Wrms Sens. 81.7dB Qms 5.52 Qes 0.813 Qts 0.71 Vas 0.14L Hole 54.4mmØ Code NE65W-04 PEERLESS BY TYMPHANY 2½" NE SERIES SPEAKER NEODYMIUM Impedance 4Ω (Re 3.7Ω) Fs 110Hz Sens. 82.2dB Power 25Wrms Qms 10.3 Qes 0.73 Qts 0.68 Vas 0.674L Hole 57.1mmØ Code NE85W-04 The Peerless NE85W-04 2.5" full-range driver features an aluminium cone with a FEA-optimised butyl rubber half-roll surround, driven by a high-strength neodymium motor. Its sculpted cast aluminium frame minimises internal reflections and doubles as a heatsink for improved thermal performance. A titanium voice coil bobbin and copper-capped motor enhance high-frequency response and reduce inductive distortion. 57.12 Pin 4.8x0.5x2 51.3 4 3x Ø4.2 3x Ø3 85.1 76 120.00° Peerless NE Neodymium Tweeters ALSO SUITABLE AS A MID-RANGE ALSO SUITABLE AS A MID-RANGE Ø46 ± 0.1 Ø40.5 ± 0.3 R2(4x) Ø2.2 ± 0.2 Thru 4° EQS 22.7 ± 0.5 15.5 ± 0.3 4.2 ± 0.2 35.8 Measuring just 20 mm by 40 mm, this 4-ohm compact micro transducer is designed for laptops, tablets, and similar applications. It features a neodymium-iron-boron magnet, a lightweight composite aluminium cone, and a high-temperature polycarbonate frame, ensuring reliable performance and impressive efficiency for its size. This unique driver delivers a remarkable response from 250 Hz upwards, ideal for spaces where no other driver will fit. Impedance 4Ω (Re 4.3Ω) Power 1Wrms Fs 340Hz Sens. 79.2dB Code PMT-2040N1625 PEERLESS BY TYMPHANY 1.6" FULL RANGE Compact micro transducer is designed for laptops, tablets, and other similar applications. It features a neodymium-iron-boron magnet, a light composite aluminium cone, and a high-temperature polycarbonate frame to provide reliable performance and impressive efficiency for its size. This unique driver will provide surprising response and output capabilities from 200 Hz and up in spaces where no other driver will fit. 37mm O/D Impedance 4Ω (Re 3.5Ω) Power 5Wrms Fs 190Hz Sens. 79.7dB Code PMT-37N28 PEERLESS BY TYMPHANY 1" FULL RANGE WITH NEODYMIUM MAGNET This 40 mm 4 ohm compact premium micro transducer is designed for computer, television array, and similar applications. It features a neodymium magnet, a light aluminium cone, and a high-temperature polycarbonate frame. The PMT family's transducers feature low resonant frequencies, low THD and a full range bandwidth. Impedance 4Ω (Re 3.6Ω) Power 5Wrms Fs 240Hz Sens. 80.6dB Hole 35.8mmØ Code PMT-40N25AL01 Peerless Micro Drivers 27.5±0.3 25.5±0.2 9.52±0.3 7.9±0.2 5.8±0.2 R4.75 42.5±0.3 40.5±0.2 PEERLESS BY TYMPHANY 20X40MM FULL RANGE
WES Australasia PTY/LTD Peerless 9 PEERLESS BY TYMPHANY 10" NE SERIES WOOFER NEODYMIUM The Peerless NE265W-08 is a high-performance 10” subwoofer featuring a neodymium motor with copper caps, a titanium voice coil former, and a patented PentaCut cone for enhanced clarity and response. Its cast aluminium basket doubles as a heat sink, improving thermal handling and reducing reflection. Ideal for high-fidelity pro audio systems. Impedance 8Ω (Re 6.4Ω) Power 190Wrms Sens. 85.1dB Fs 24Hz Qms 11.4 Qes 0.352 Qts 0.34 Vas 75.2L Hole 235mmØ Code NE265W-08 PEERLESS BY TYMPHANY 12" NE SERIES WOOFER NEODYMIUM LARGE BASS DRIVER RARE-EARTH MAGNET TECHNOLOGY The Peerless NE315W-04 is a high-performance 12” subwoofer designed for deep, controlled bass in compact enclosures. Featuring a patented PentaCut cone, neodymium motor, and cast aluminium frame, it delivers low distortion and high thermal efficiency. Its cast aluminium basket minimises internal reflections and doubles as a heat sink, enhancing thermal performance and power handling. With nearly 10 mm of linear excursion and a resonance frequency under 20 Hz, it’s ideal for sealed or vented enclosures in demanding playback environments. Impedance 4Ω (Re 2.9Ω) Fs 22Hz Power 150Wrms Sens. 87.9dB Qes 0.357 Qms 15 Qts 0.35 Vas 162L Hole 287.8mmØ Code NE315W-04 PEERLESS BY TYMPHANY 8" NE SERIES SPEAKER NEODYMIUM The Peerless NE225W-04 is a high-performance 8” subwoofer engineered for precision and power. It features a compact neodymium motor assembly with copper caps to enhance magnetic efficiency and reduce distortion. Its sculpted motor design promotes effective cooling and minimises acoustic reflections. The patented PentaCut cone, paired with a half-roll rubber surround for optimal damping and durability. Additionally, a copper cap on the pole piece extends high-frequency response and lowers back EMF for cleaner output. Impedance 4Ω (Re 3Ω) Fs 37Hz Power 125Wrms Sens. 88.2dB Qms 10.3 Qes 0.386 Qts 0.37 Vas 34.4L Diam. 224.8mmØ Code NE225W-04 Ø212 Ø225 187 107 119 Peerless NE Neodymium Woofers
10 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 5¼" HDS MID-WOOFER PROPRIETARY PPB POLYPROPYLENE CONE The Peerless P830860 5¼” HDS woofer combines a proprietary PPB cone, aluminium shorting ring, and long-throw voice coil for low distortion and extended response. Its cast aluminium frame and double-vented motor enhance rigidity and thermal control. Designed for vented multiway systems, it offers precision, clarity, and dynamic control for high-fidelity audio applications. Impedance 8Ω (Re 6Ω) Fs 72Hz Power 30Wrms Sens. 86.5dB Qms 2.08 Qes 0.725 Qts 0.54 Vas 6.12L Hole 115mmØ Code P830860 PEERLESS BY TYMPHANY 4" HDS MID-WOOFER The Peerless P830992 4” HDS woofer features a lightweight Glass-Fibre Composite (GFC) cone, aluminium shorting ring low distortion and extended frequency response. Its cast aluminium frame offers rigidity and heat sinking capacity. Ideal for vented multi-way systems, it delivers sharp transients, stable dynamics, and classic hi-fi performance in compact enclosures. Impedance 8Ω (Re 5.2Ω) Fs 120Hz Power 30Wrms Sens. 85.5dB Qms 2.17 Qes 0.94 Qts 0.66 Vas 1.39L Hole 94.8mmØ Code 830992 PEERLESS BY TYMPHANY 4" HDS MID-WOOFER The Peerless P830870 4” HDS driver features a damped black polypropylene cone, aluminium shorting ring, and long-throw voice coil for low distortion and extended frequency response. Its cast aluminium basket and double-vented motor enhance structural rigidity and function as a heatsink. Designed for high-performance audio, it delivers clean transients and dynamic clarity in compact Hi-Fi and multimedia systems. Impedance 8Ω (Re 5.3Ω) Fs 100Hz Power 25Wrms Sens. 84.7dB Qms 1.92 Qes 0.871 Qts 0.6 Vas 1.73L Hole 94.8mmØ Code 830870 PROPRIETARY PPB POLYPROPYLENE CONE PEERLESS BY TYMPHANY 5¼" HDS MID-WOOFER HDS GLASS FIBRE CONE (HDS-GFC) Impedance 8Ω (Re 5.9Ω) Fs 76Hz Power 30Wrms Sens. 86.4dB Qms 2.64 Qes 0.692 Qts 0.55 Vas 5.11L Hole 90mmØ Code P830991 The Peerless P830991 5¼” HDS woofer combines a glass-fibre composite cone, ferrite magnet, aluminium shorting ring, and long-throw voice coil to achieve low distortion and extended frequency response. Its robust cast aluminium frame and double-vented motor ensure excellent thermal control and rigidity. Designed for vented multi-way systems, it delivers crisp transients and high-fidelity sound in compact setups. 57° 61,50° DC 110 120,8 106,8 Ø4,4 holes 94,9 53 3,5 Ø152,3 57° 61,50° 61,3 4,1 120,3 Ø5.3 holes 134,3 R5 Peerless HDS Woofers HDS GLASS FIBRE CONE (HDS-GFC) CARBON FIBRE
WES Australasia PTY/LTD Peerless 11 Impedance 8Ω (Re 5.9Ω) Fs 64.5Hz Power 110Wrms Sens. 88.2dB Qms 3.85 Qes 0.43 Qts 0.39 Vas 7.2L Hole 120.3mmØ Code P831882 EXCLUSIVE SERIES PHASE PLUG PEERLESS BY TYMPHANY 5¼" HDS MID-WOOFER Modern silver coloured Phase Plug and cast-aluminium basket. Nomex fibre paper pulp cone. Rubber surround. Double bonded former. Open aluminium voice coil. Highest power with minimum compression. Optimised for compact Bass-reflex designs. 6 litre box gives 70Hz. PEERLESS BY TYMPHANY 6½" HDS MID-WOOFER HDS GLASS FIBRE CONE (HDS-GFC) The Peerless P830990 is a 6½″ HDS woofer featuring a glass-fibre composite (GFC) cone, rubber surround, and a cast aluminium basket designed for durability and acoustic precision. Its long-throw voice coil and aluminium shorting ring reduce distortion and extend the frequency response. The basket also enhances structural rigidity, motor cooling, and allows additional ventilation under the spider, minimising air compression effects. Impedance 8Ω (Re 6.3Ω) Fs 56Hz Power 50Wrms Sens. 87.6dB Qms 2.45 Qes 0.516 Qts 0.43 Vas 13.5L Hole 145.2mmØ Code P830990 PEERLESS BY TYMPHANY 6½" HDS MID-WOOFER EXCLUSIVE SERIES PHASE PLUG Modern, unique style and size. Silver coloured Phase Plug and basket Black Nomex fibre paper pulp cone, rubber surround & double bonded former. High power open ventilated aluminium voice coil. Premium audiophile unit. Optimised for compact Bass-reflex designs. 15 litre box gives 45Hz. Impedance 8Ω (Re 5.9Ω) Fs 68Hz Power 30Wrms Sens. 87.2dB Qms 2.18 Qes 0.971 Qts 0.67 Vas 6.81L Hole 146mmØ Code P830883 50 60 70 80 90 100 100000 10000 1000 100 10 SPL[dB] @ 2.83Vrms/1m 0 10 20 30 40 50 Impedance [Ohms] @ 1.415Vrms On Axis 30 Deg 60 Deg Imp Frequency [Hz] Impedance 8Ω (Re 6.5Ω) Fs 48Hz Power 30Wrms Sens. 88.3dB Qms 3.39 Qes 0.446 Qts 0.39 Vas 18.6L Hole 145.2mmØ Code P830875 NOMEX CONE PEERLESS BY TYMPHANY 6½" HDS MID-WOOFER The Peerless P830875 is a 6½″ HDS woofer with a Nomex cone and half-roll rubber surround, built for highperformance audio. An aluminium shorting ring lowers coil inductance, improving frequency response and reducing distortion. Its long-throw voice coil delivers linear, high-excursion clarity. Vented cone necks and a cast aluminium basket with spider venting minimise air compression and enhance heat dissipation. The Nomex cone offers a distinctive visual and acoustic experience. 55° 62,50° 182,1 164 R5 Ø5,3 holes 78 3,8 145
12 Peerless WES Australasia PTY/LTD Impedance 4Ω (Re 2.8Ω) Fs 56Hz Power 80Wrms Sens. 84.5dB Qms 4.36 Qes 0.441 Qts 0.4 Vas 4.68L Hole 120mmØ Code P830945 PEERLESS BY TYMPHANY 8" HDS WOOFER PROPRIETARY PPB POLYPROPYLENE CONE The Peerless P830869 is an 8″ HDS woofer built for smooth low-frequency output. It features a proprietary developed polypropylene cone, cast aluminium basket, and ferrite magnet for durability and precision. An aluminium shorting ring reduces coil inductance, enhancing frequency response and lowering distortion. Its long-throw voice coil delivers linear, high-excursion clarity. The Nomex-based cone adds distinctive visual and acoustic character. Impedance 8Ω (Re 5.8Ω) Fs 34Hz Power 30Wrms Sens. 88.8dB Qms 5.68 Qes 0.402 Qts 0.38 Vas 57.6L Hole 190mmØ Code P830869 PEERLESS BY TYMPHANY 5¼" SLS SUBWOOFER SLS FOR HIGH EXERTION HEAVY-DUTY HIGH SPL DESIGN The Peerless P830945 is a 5¼" woofer with a paper cone, wide rubber surround, and ceramic ferrite magnet featuring an aluminium shorting ring for reduced distortion. Its sculpted truncated steel frame allows tight driver spacing, while under-spider venting improves cooling and reliability. Ideal for compact subwoofers or low-mid bass use, it delivers accurate, detailed low-frequency performance. Peerless SLS Woofers HDS 8” SUBWOOFER APPLICATION DESIGN SUGGESTION FROM A DISCONTINUED SUB KIT The Peerless 8” is a very impressive performance woofer built for smooth low-frequency output. We have our open-source design sheets from a kit we used to supply that features a very clean and distortion free sub woofer that is more for bottom-end extending high performance 2-way speakers than the typical boom-box Home theatre sub. Custom local engineered design optimised for an audiophile acoustic character of invisible yet obviously present low frequency extension down to below 30Hz. PEERLESS BY TYMPHANY 6½" HDS MID-WOOFER PROPRIETARY PPB POLYPROPYLENE CONE The Peerless P830874 is a 6½″ HDS woofer that combines a proprietary PPB cone, aluminium shorting ring, and a long-throw voice coil to achieve low distortion and extended frequency response. Its cast aluminium basket provides high structural rigidity, enhanced heat dissipation for the motor, and additional ventilation under the spider. This ventilation, combined with a vented cone neck, reduces air compression effects. Impedance 8Ω (Re 6.3Ω) Fs 61Hz Power 75Wrms Sens. 87.7dB Qms 3.68 Qes 0.595 Qts 0.51 Vas 10.6L Hole 145.2mmØ Code P830874 55° 62,50° 182,1 164 R5 Ø5,3 holes 78 3,8 145
WES Australasia PTY/LTD Peerless 13 Impedance 8Ω (Re 5.6Ω) Fs 46Hz Power 90Wrms Sens. 86.5dB Qms 7.21 Qes 0.836 Qts 0.75 Vas 19L Hole 177mmØ Code 830667 PEERLESS BY TYMPHANY 8" SLS SUBWOOFER The Peerless P830667 8″ SLS subwoofer features a paper cone, half-roll rubber surround, and ferrite magnet with an aluminium shorting ring to reduce distortion. Its premium stamped steel frame provides high structural rigidity and enhanced motor cooling, reducing power compression and improving long-term reliability. This subwoofer delivers a smooth, deep, and controlled low-frequency response. PEERLESS BY TYMPHANY 10" SLS SUBWOOFER The Peerless P830668 10" SLS subwoofer is designed for deep, controlled bass in speaker enclosures. It features a coated paper cone with a rubber surround, a robust ferrite magnet with an aluminium shorting ring to reduce distortion. Its sculpted stamped steel frame offers structural rigidity and allows close driver spacing. Ideal for highimpact low-frequency applications. Box eg. Closed 30-45L, Vented 35-50L. Impedance 8Ω (Re 5.6Ω) Fs 35Hz Power 70Wrms Sens. 88.8dB Qms 7.28 Qes 0.646 Qts 0.59 Vas 62.9L Hole 223mmØ Code P830668 PEERLESS BY TYMPHANY 6½" SLS SUBWOOFER Impedance 4Ω (Re 2.7Ω) Fs 47Hz Power 75Wrms Sens. 84.6dB Qms 7.42 Qes 0.454 Qts 0.43 Vas 6.03L Hole 146mmØ Code P830946 The Peerless 830946 6½″ woofer features a paper cone, wide rubber half-roll surround, and ceramic ferrite magnet with an aluminium shorting ring to reduce distortion. Its sculpted steel frame enables tight driver spacing, while under-spider venting improves cooling, reducing power compression and enhancing long-term reliability. The woofer delivers accurate and detailed sound, making it an ideal choice for high-performance speaker systems. SLS FOR HIGH EXERTION HEAVY-DUTY HIGH SPL DESIGN SLS FOR HIGH EXERTION HEAVY-DUTY HIGH SPL DESIGN PEERLESS BY TYMPHANY 12" SLS SUBWOOFER The Peerless P830669 12″ SLS subwoofer is designed for deep, controlled bass in speaker enclosures. It features a coated paper cone with a rubber surround and a robust ferrite magnet with an aluminium shorting ring to reduce distortion. Its sculpted stamped steel frame offers structural rigidity and allows close driver spacing, making it ideal for high-impact low-frequency applications. Recommended box volumes: sealed 30–45L, vented 35–50L. Impedance 8Ω (Re 5.6Ω) Fs 34Hz Power 100Wrms Sens. 88.7dB Qms 9.98 Qes 0.678 Qts 0.64 Vas 107L Hole 277mmØ Code P830669 SLS FOR HIGH EXERTION HEAVY-DUTY HIGH SPL DESIGN
14 Peerless WES Australasia PTY/LTD TRUNCATED STEEL FRAME - TREATED PAPER CONE The Peerless P830856 5¼″ SDS woofer features a treated paper cone, rubber surround, and a truncated steel frame for tight driver spacing. It offers low resonant frequency performance and is ideal for compact speaker systems requiring smooth and controlled low-frequency output. Impedance 8Ω (Re 5.9Ω) Fs 65Hz Power 60Wrms Sens. 86.1dB Qms 3.47 Qes 0.76 Qts 0.62 Vas 6.58L Hole 117mmØ Code P830656 PEERLESS BY TYMPHANY 5" SDS MID-WOOFER PEERLESS BY TYMPHANY 6½" SDS MID-WOOFER TRUNCATED STEEL FRAME - TREATED PAPER CONE Impedance 8Ω (Re 5.9Ω) Fs 48Hz Power 60Wrms Sens. 89dB Qms 2.67 Qes 0.565 Qts 0.47 Vas 20.1L Hole 144mmØ Code 830657 The Peerless P830857 is a 6½″ SDS woofer featuring a coated paper cone, rubber surround, and a truncated stamped steel frame for tight driver spacing. It offers low resonant frequency performance and is ideal for compact speaker systems requiring smooth and controlled low-frequency output. PEERLESS BY TYMPHANY 4" SDS MID-WOOFER TRUNCATED STEEL FRAME - TREATED PAPER CONE The Peerless P830855 4” SDS woofer features a treated paper cone, rubber surround, and a truncated steel frame for tight driver spacing. With venting at the cone apex and under the spider, it ensures quiet operation and improved voice coil cooling. Ideal for surround speakers, compact monitors, midrange in 3-way or 4-way systems, or small PC subwoofers. Impedance 8Ω (Re 5.6Ω) Fs 66Hz Power 30Wrms Sens. 83.1dB Qms 4.56 Qes 0.539 Qts 0.48 Vas 3.26L Hole 92.5mmØ Code P830855 TRUNCATED STEEL FRAME - PAPER CONE The Peerless SDS-135F25CP02-04 5¼” high-excursion woofer is built for compact sealed or vented enclosures. With a coated paper cone and rubber surround, it delivers smooth low-frequency response. A vented spider and aluminium voice coil former minimise power compression and boost thermal handling, while the truncated steel basket enables tight cabinet integration. Perfect for portable speakers, 2.1 setups, and small subwoofers. Impedance 4Ω (Re 3.1Ω) Fs 58Hz Power 50Wrms Sens. 84dB Qms 3.68 Qes 0.45 Qts 0.4 Vas 3.94L Hole 134mmØ Code SDS-135F25CP02-04 PEERLESS BY TYMPHANY 5¼" SDS MID-WOOFER Peerless SDS Woofers
WES Australasia PTY/LTD Peerless 15 Impedance 4Ω (Re 4.2Ω) Fs 25Hz Power 150Wrms Sens. 83.5dB Qms 4.14 Qes 0.313 Qts 0.29 Vas 60.3L Hole 239mmØ Code 830452 PEERLESS BY TYMPHANY XLS 10" XTRA-LONG-STROKE SUBWOOFER The Peerless P830452 10” high-performance subwoofer is designed to suit the unlimited demands of basshungry enthusiasts in home or automotive audio. It features a massive stacked magnet, thick Nomex cone, flat spider, and aluminium frame. Emphasis has been placed on the design to achieve extremely deep bass, longterm reliability, high power handling, and very low distortion or compression under very large sound pressures. XPANDED EXTRA LONG STROKE (XXLS) SERIES 4Ω The Peerless P835017 is a 12” subwoofer engineered for ultra-low distortion and extended excursion. As part of the XXLS (Xpanded Extra Long Stroke) series, it features a reinforced aluminium cone, flat spider, and cast aluminium basket for optimal mechanical stability. The advanced double ferrite magnet system includes distortion-cancelling fixtures and generous under-spider venting to ensure clean, controlled bass performance across sealed and vented enclosures. Impedance 4Ω (Re 2.6Ω) Fs 23Hz Power 120Wrms Sens. 85.8dB Qms 10.4 Qes 0.444 Qts 0.39 Vas 133L Code P835017 PEERLESS BY TYMPHANY 12" XXLS SUBWOOFER The Peerless P830845 is a 12” high-performance subwoofer designed for ultra-low distortion and extended excursion. As part of the XXLS (Xpanded Extra Long Stroke) series, it features a Nomex-reinforced paper cone, flat spider, and cast aluminium basket for optimal mechanical stability. The advanced double ferrite magnet system incorporates multiple distortion-cancelling fixtures and generous under-spider venting to ensure clean, controlled bass performance in both sealed and vented enclosures. Impedance 8Ω (Re 5.8Ω) Fs 29Hz Power 175Wrms Sens. 85.9dB Qms 12.5 Qes 0.69 Qts 0.65 Vas 91.9L Hole 277mmØ Code P830845 PEERLESS BY TYMPHANY 12" XXLS SUBWOOFER PEERLESS BY TYMPHANY 10" XXLS SUBWOOFER Impedance 4Ω (2.6Ω) Fs 28.27Hz Power 120Wrms Sens. 86.4dB Qms 8.94 Qes 0.45 Qts 0.43 Vas 50.8L Hole 239mmØ Code P835037 The Peerless P835037 is a 10” subwoofer engineered for ultra-low distortion and extended excursion. As part of the XXLS (Xpanded Extra Long Stroke) series, it builds on the XLS legacy with enhanced mechanical stability and acoustic precision. Featuring a paper cone, rubber surround, cast aluminium frame, flat spider, and generous under-spider venting. It delivers clean, controlled bass in both sealed and vented enclosures. 310mm 125mm 300mm 5mmø 280mm 147mm Peerless XLS Subwoofers XPANDED EXTRA LONG STROKE (XXLS) SERIES 4Ω XPANDED EXTRA LONG STROKE (XXLS) SERIES 8Ω
16 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 3½" PASSIVE RADIATOR BASS EXTENSION REPLACING PORT The Peerless P830878 is a compact 3.5” passive radiator designed to enhance low-frequency performance in space-constrained enclosures. Featuring a coated paper cone, rubber surround, and a cosmetic steel frame, it complements Peerless SDS woofers both visually and acoustically. With a low resonance frequency of 29 Hz and precise mechanical compliance, it is ideal for extending bass response without the need for long ports. Sd 50.2cm² Fs 29Hz Cms 0.791mm/N Mms 38.5g Qms 10 Vas 2.8L Diam. 123mmØ Hole 92mmØ Depth 26.5mm Code P830878 Peerless Passive Radiators PEERLESS BY TYMPHANY 15" SUBWOOFER EXTRA-LONG STROKE The Peerless SDF-375F75PR01-04 is a powerful 15" subwoofer designed to deliver low-frequency output in compact enclosures. It features an extralong stroke rubber surround, a rigid paper diaphragm, and a cast aluminium frame, making this driver engineered for high excursion and durability under demanding conditions. With a resonant frequency of 26Hz and 400W power (rms) capacity, it is ideal for professional audio systems or theatre setups. Impedance 4Ω (Re 2.6Ω) Fs 26Hz Power 400Wrms Sens. 87.2dB Qms 9.31 Qes 0.436 Qts 0.42 Vas 91.2L Hole 353mmØ Code SDF-375F75PR01-04 Peerless SDF Subwoofers PEERLESS BY TYMPHANY 5¼ SHALLOW WOOFER INVERTED ALUMINIUM CONE The Peerless by Tymphany GBS-135F25AL02-04 is a 5¼" shallow woofer engineered for high performance in space-constrained applications. With a mounting depth of just 27.4mm, it features an anodised aluminium cone, rubber surround, and a ferrite magnet that together deliver impressive excursion and bass response. Designed for 4-ohm systems, it handles up to 35Wrms making it ideal for compact speaker builds without sacrificing sound quality. Its stamped steel frame and optimised suspension ensure durability and accurate sound reproduction across a wide frequency range. Impedance 4Ω (Re 3.3Ω) Fs 64Hz Power 35Wrms Sens. 84.8dB Qms 4.33 Qes 0.681 Qts 0.59 Vas 5.3L Hole 119mmØ Code GBS-135F25AL02-04 Peerless Low-Profile Woofers
WES Australasia PTY/LTD Peerless 17 295mm 73mm 25mm 175mm 315mm 195mm H812 195mm Peerless Compression Drivers This horn is engineered to operate smoothly down to the lowest possible crossover frequency, while maintaining consistent and predictable dispersion throughout their intended range. Useable down to 800Hz with 100° coverage. PEERLESS BY TYMPHANY 1" TITANIUM DOME COMPRESSION DRIVER WITH 2/4-BOLT MOUNT FOR USE WITH POPULAR HORNS The Peerless DFM-2535R00-08 is a high-performance 1” compression horn driver designed for pro audio and high-efficiency systems. It features a 1.4” proprietary titanium diaphragm with a polyimide surround, delivering smooth and detailed highs. Suitable for two-way systems with lower crossover points. All materials resist environmental factors such as heat, vibration, and ageing, ensuring many years of stable performance. Impedance 8Ω (Re 6.5Ω) Power 25Wrms Sens. 107dB Fs 746Hz Mount 2-Bolt / 4-Bolt Code DFM-2535R00-08 6.4mm 90mm 50.8mm 76mmØ 25.4mmØ 4-M6 4.8mm PEERLESS BY TYMPHANY 1” TITANIUM DOME COMPRESSION DRIVER WITH 2/3-BOLT MOUNT FOR USE WITH POPULAR HORNS The Peerless DFM-2544R00-08 1” compression driver features a coated titanium diaphragm with a unique coating to minimise dome resonance, a highsensitivity magnet system, a three-slot phasing plug, and an aluminium voice coil for improved high-frequency response. All materials resist environmental factors such as heat, vibration, and ageing, ensuring many years of stable performance. Impedance 8Ω (Re 6.09Ω) Power 55Wrms Sens. 105dB Fs 784.22Hz Mounting 2-Bolt / 3-Bolt Code DFM-2544R00-08 200 1k 10k 40k Frequency (Hz) On Axis Response 30Deg Response 60Deg Response Impedance Response 70 80 90 100 110 120 SPL (dB) @ 2.83V/1m 0 10 20 30 40 50 Impedance (Ohms) @ 2.83V PEERLESS BY TYMPHANY 1" TITANIUM DOME COMPRESSION DRIVER Impedance 8Ω (Re 6.28Ω) Power 25Wrms Sens. 104dB Fs 1597.12Hz Code DFL-2525R00-08 HORN WAVEGUIDE 12" Height 200mm Width 315mm Depth 195mm Mount 18 TPI Code H812 The Peerless DFL-2525R00-08 is a cost-effective 1” compression horn driver engineered for professional sound reinforcement systems. It features a pure titanium diaphragm paired with a precision-designed phase plug, delivering solid, controlled high-frequency performance. Optimised for reliability, it uses high-grade ferrofluid to ensure consistent output and durability under demanding conditions. HORN WAVEGUIDE 12”
18 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 5¼″ WOOFER HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES The Peerless FSL-0512R01-08 is a 5.25” professional-grade midrange woofer designed for small to mediumsized multi-way speaker systems. Featuring a damped paper cone, optimised multi-roll surround, and a highstrength stamped steel frame, it delivers natural sound with minimal distortion. Its FEA-optimised ferrite motor structure and low inductance voice coil enhance high-frequency detail and transient response. Impedance 8Ω (Re 5.7Ω) Fs 120Hz Power 90Wrms Sens. 91.2dB Qms 2.41 Qes 0.76 Qts 0.58 Vas 3.48L Hole 125.1mmØ Code FSL-0512R01-08S PEERLESS BY TYMPHANY 10″ WOOFER HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES The Peerless FSL-1015R02-08S is a professional-grade 10″ woofer engineered for high-output audio applications. It features a pressed steel frame, a paper cone, a fabric surround, a 1.5" high-temperature voice coil paired with a ferrite motor ensures reliable performance under demanding conditions, while its 100W (AES) power handling makes it a versatile choice for pro audio environments. Impedance 8Ω (Re 5.3Ω) Fs 68Hz Power 100Waes Sens. 94.3dB Qms 4.58 Qes 0.743 Qts 0.64 Vas 36L Hole 232mmØ Code FSL-1015R02-08S PEERLESS BY TYMPHANY 8″ WOOFER The Peerless FSL-0818R01-08S is an 8” high-efficiency woofer designed for mid-bass applications in compact two-way or three-way systems. Featuring a Kevlar-loaded, non-pressed paper cone, a multi-roll surround, and a vented ferrite motor structure, it delivers a smooth response and low distortion across its operating range. The 1.8” high-temperature voice coil and bumped back plate allow for extended excursion and sustained power handling, while the stamped steel frame ensures mechanical stability. Impedance 8Ω (Re 5.6Ω) Fs 74Hz Power 147Waes Sens. 92.8dB Qms 3.53 Qes 0.418 Qts 0.37 Vas 15.9L Hole 176.6mmØ Code FSL-0818R01-08S PEERLESS BY TYMPHANY 10″ WOOFER HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES The Peerless FSL-1020R02-08S is a professional-grade 10″ woofer engineered for high-output audio applications. It features a pressed steel frame, a paper cone, a fabric surround, a 2" high-temperature voice coil paired with a ferrite motor ensures reliable performance under demanding conditions, while its 167W (AES) power handling makes it a versatile choice for pro audio environments. Impedance 8Ω (Re 5.8Ω) Fs 65Hz Power 167Waes Sens. 95.3dB Qms 4.75 Qes 0.391 Qts 0.36 Vas 38.5L Hole 232mmØ Code FSL-1020R02-08S Peerless Professional Loudspeakers
WES Australasia PTY/LTD Peerless 19 PEERLESS BY TYMPHANY 12" WOOFER The Peerless FSL-1220R02-08 is a rugged 12″ professional woofer engineered for high-output, low-distortion performance in demanding audio environments. Its paper cone and fabric surround are housed in a pressed steel frame and driven by a ferrite magnet motor. A large 2” voice coil, combined with a vented motor structure, enables extended linear excursion and ensures thermal stability under demanding conditions. Impedance 8Ω (Re 5.9Ω) Fs 62Hz Power 167Wrms Sens. 96.1dB Qms 8.67 Qes 0.588 Qts 0.55 Vas 61.1L Hole 271.1mmØ Code FSL-1220R02-08 PEERLESS BY TYMPHANY 12" WOOFER DRIVER 12" professional woofer is perfectly suited for use in a high efficiency, wide dispersion system such as a stage monitor or sound reinforcement speaker. With extremely flat response up to 3,000 Hz and 96 dB efficiency, this woofer should mate easily to a horn tweeter. Featuring a 2.5" high temperature voice coil, vented magnet assembly, reinforced steel frame, and double roll surround, the FSL-1225R02-08 is specifically designed to stand up to the rigors of pro sound. Impedance 8Ω (Re 5.5Ω) Fs 63Hz Power 233Wrms Sens. 96.6dB Qms 4.19 Qes 0.486 Qts 0.44 Vas 54.8 Hole 277mmØ Code FSL-1225 PEERLESS BY TYMPHANY 12” WOOFER 600W HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES The Peerless FSL1230PR01-08 12” woofer is designed to deliver high output, deep, controlled bass and articulate midbass response in professional sound reinforcement systems. It features a pressed steel basket, a paper diaphragm, and a fabric surround for smooth response and efficient output. A 3” voice coil, combined with a vented motor structure, allows for extended linear excursion, providing clean, distortion-free performance and ensuring thermal stability under demanding conditions. Impedance 8Ω (Re 6.1Ω) Fs 46Hz Power 600Wrms Sens. 89.8dB Qms 8.31 Qes 0.801 Qts 0.73 Vas 57.3L Hole 284mmØ Code FSL-1230PR01-08 HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES PEERLESS BY TYMPHANY 10” PROFESSIONAL WOOFER The Peerless NCP-1030R00-08 is a high-power 10″ woofer designed for demanding audio applications where power and precision are paramount. It combines a lightweight fibre-reinforced paper cone with a high-efficiency Neodymium motor to deliver stunning clarity and punch. With a rated power of 400W AES and sensitivity of 96.3 dB, it’s built to handle demanding audio environments, whether you're designing for pro sound reinforcement or high-output home systems. Impedance 8Ω (Re 5.8Ω) Fs 67Hz Power 400Waes Sens. 96.3dB Qms 1.92 Qes 0.265 Qts 0.23 Vas 27L Hole 232mmØ Code NCP-1030R00-08 NCP SERIES - CAST ALUMINIUM FRAME
20 Peerless WES Australasia PTY/LTD PEERLESS BY TYMPHANY 15" WOOFER DRIVER HIGH-OUTPUT WOOFER WITH POWERFUL BASS AND PRECISION The Peerless FSL-1530R01-08 15” woofer features a FEA-optimised ferrite magnet motor, a vented yoke for enhanced cooling, and a high-strength stamped steel frame. It uses a 3” voice coil and a Kevlar-loaded non-pressed paper cone to dampen and control resonance, while the cloth surround and semi-progressive spider are tuned to minimise distortion across the excursion range. With high output capability, tight and accurate bass response, and a flat, natural frequency range extending beyond 2,000 Hz, this driver is an ideal choice for compact vented enclosures and 2-way system designs. Impedance 8Ω (Re 5.3Ω) Fs 41Hz Power 350Wrms Sens. 98dB Qms 4.98 Qes 0.252 Qts 0.24 Vas 180L Hole 350mmØ Code FSL-1530R01-08 PEERLESS BY TYMPHANY 18" SUBWOOFER DRIVER PAPER CONE 600W RMS HIGH POWER RATED SUBWOOFER The Peerless FSL-1830R09-08 is an 18″ professional woofer built for tight, punchy bass, perfect for small bass bins and 3-way sound systems. It features a pressed steel frame, paper cone, and fabric surround and powered by a strong ferrite magnet. It delivers precise low-end with high efficiency. A vented pole piece and light cone reduce compression and improve transient response, making it a dependable choice for demanding pro audio setups. Impedance 8Ω (Re 6.8Ω) Fs 33Hz Power 600Wrms Sens. 93.7dB Qms 15.9 Qes 0.602 Qts 0.58 Vas 220L Hole 417mmØ Code FSL-1830R09-08 Ø446±0.50 Ø460±0.80 212±0.50 202.50±0.50 416.58±0.50 PEERLESS BY TYMPHANY 15" WOOFER DRIVER HEAVY-DUTY ROBUST LONG-LIFE HIGH-POWER FSL SERIES The Peerless FSL-1520R02-08 15” woofer is a great cost-effective driver for use in stage monitors, sound reinforcement speakers, or anywhere there is a need for a wide response, high output low frequency driver. With an optimsed multi-roll fabric reinforced surround and spider keeping the cone linear, distortion has been minimised. Impedance 8Ω (Re 5.5Ω) Fs 43Hz Power 200Wrms Sens. 95.9dB Qms 10.2 Qes 0.745 Qts 0.7 Vas 203L Hole 347mmØ Code FSL-1520R02-08
